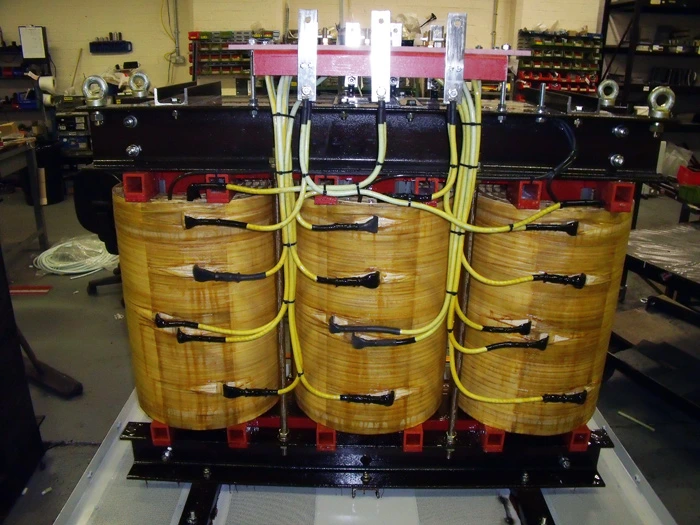

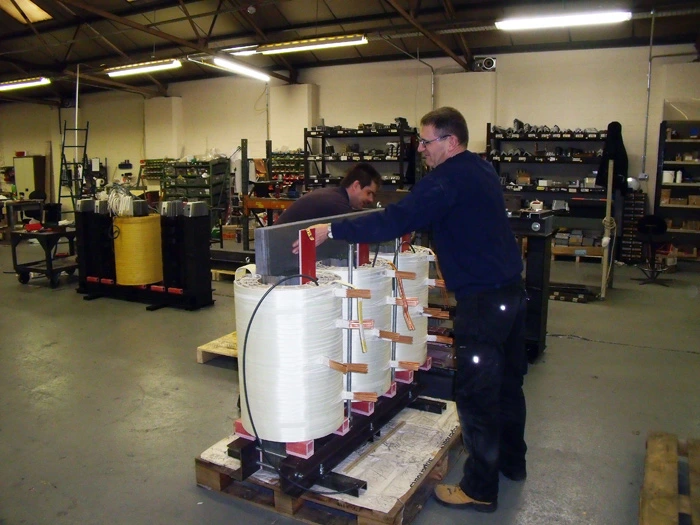

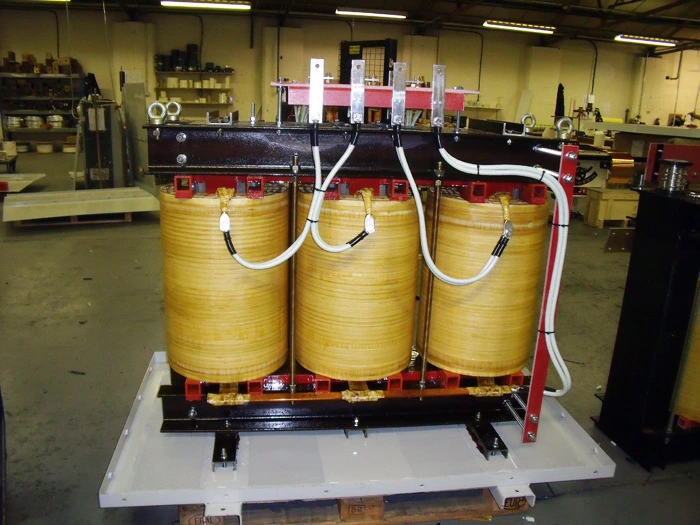

3PH Transformer

Project: 3PH Transformer
Qty: 5 off

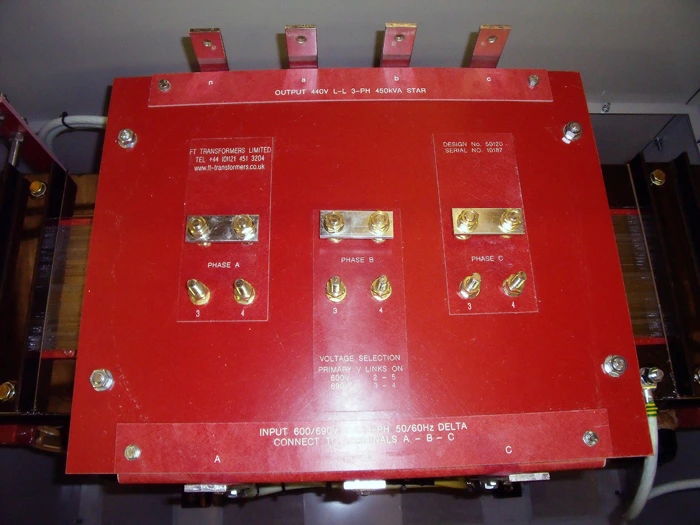

Primary – 600-690v Delta
Secondary – 450v L-L Star + N
Rating – 450kVA

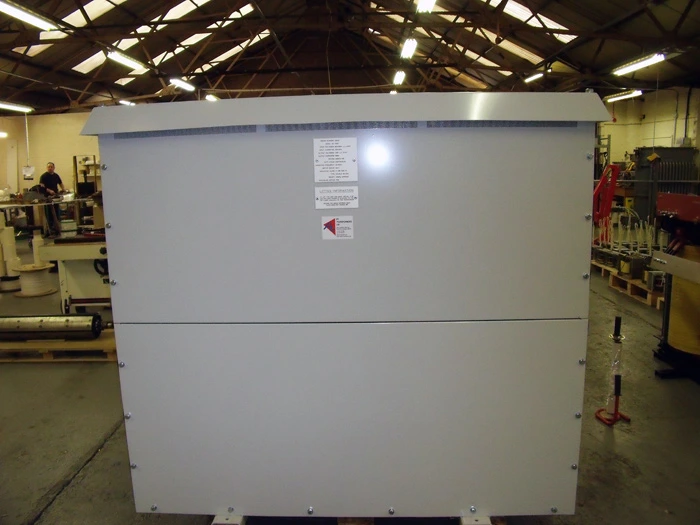

Enclosed IP31

The above project was designed, manufactured and tested in 5 weeks to customers specification.

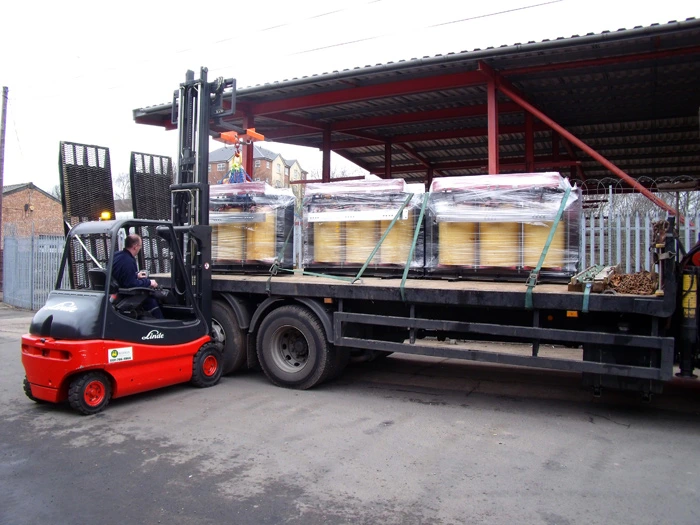

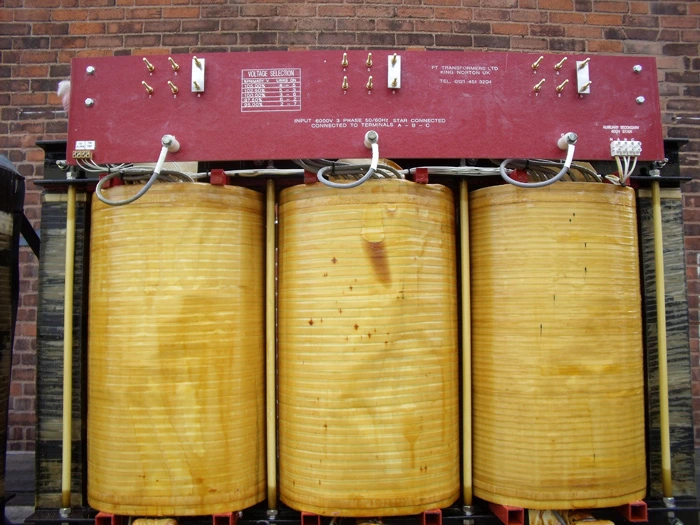

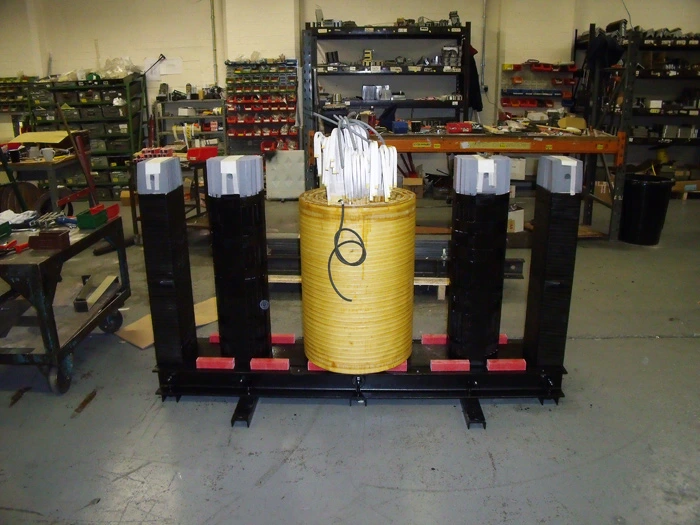

3PH 5 Limb Hexaphase Transformers

Project: 3PH 5 Limb Hexaphase Transformers
Qty: 3 off
Primary – 6600v +/-2.5/5% taps
Secondary – to give 177VDC @ 2535ADC
Rating – Primary – 559KVA Secondary – 791KVA
Auxillary wind – 400v 3kva Yyno with reference to primary
Class H insulation Class B Temperature Rise Limit
